Draw the horizontal corrugated compensator (XLB) is introduced
Small lever type transverse corrugated compensator in addition to the lateral displacement and angular displacement can compensate the bending pipe, at the same time, it can compensate the axial displacement.

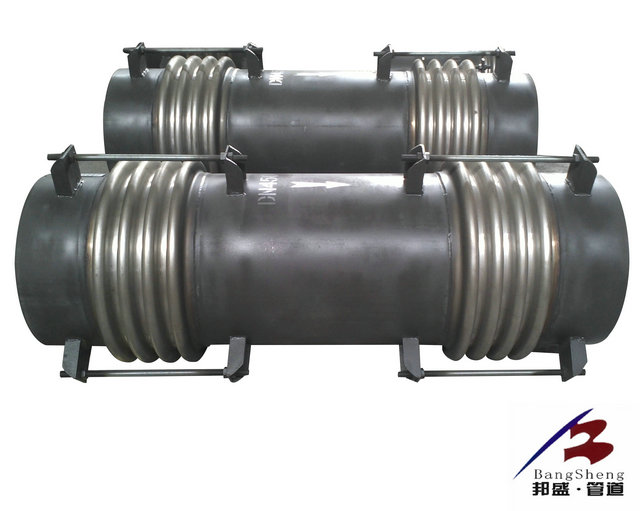

Draw the horizontal corrugated compensator (XLB) diagram


Draw the horizontal corrugated compensator (XLB) model instance

For example: 0.6 XLB500FB - 1500
Said nominal diameter is 500 mm, pressure is 0.6 Mpa, length of 1500 mm, stainless steel flange connection of small rod lateral bellows compensator.

Draw the horizontal corrugated compensator (XLB) instructions
Small lever type transverse corrugated compensator in addition to the lateral displacement and angular displacement can compensate the bending pipe, at the same time, it can compensate the axial displacement. Listed in the sample of the axial offsets and lateral offsets (X0, Y0) are used as the maximum axial or lateral compensation alone.
